CAMSVALVE TRAINRODSPISTONSSTROKER KITSCRANKSHEADS / CASES

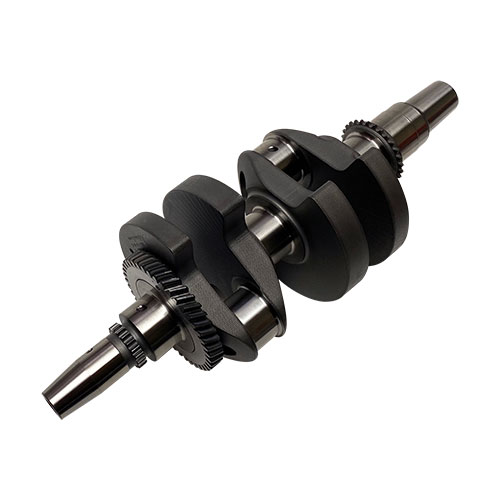

Polaris RZR XP 1000 CRANKSHAFTS
BC crankshafts are made from the finest, aerospace grade 4340 steel billet material. CNC machined on state of the art, 5 axis Mazak Integrex 300-IV CNC machines to exacting tolerances (.0001"). Every crankshaft features large radius journals that add rigidity for high horsepower, high boost, high rpm applications. Gun drilled, CNC ground oil holes feature a smooth surface for extra oiling, tear dropped for added oil scoop, CNS drilled for priority main feeding to the rods and micro polished to a mirror finish for optimum bearing lubricity. All cranks are stress relieved, shot peened, magna flux inspected and nitrided (multi step heat treatment) for ultimate performance. Fully profiled counterweights are designed for reduced windage through the crankcase creating less oil resistance for better rpm potential.

Part # Description # Stroke Crank Pin Main Buy Now Status
BC5901 CRANKSHAFT - Polaris RZR XP 1000 (+4.5mm Stroke 180° Crank Pin), 4340 Billet 78mm 40.93mm 40.98mm In-Stock
BC5900 CRANKSHAFT - Polaris RZR XP 1000 (Stock Stroke 180° Crank Pin), 4340 Billet 73.5mm 40.93mm 40.98mm In-Stock
BC5905 CRANKSHAFT - Polaris XPEDITION (+4.5mm Stroke 180° Crank Pin), 4340 Billet 78mm 40.93mm 40.98mm In-Stock

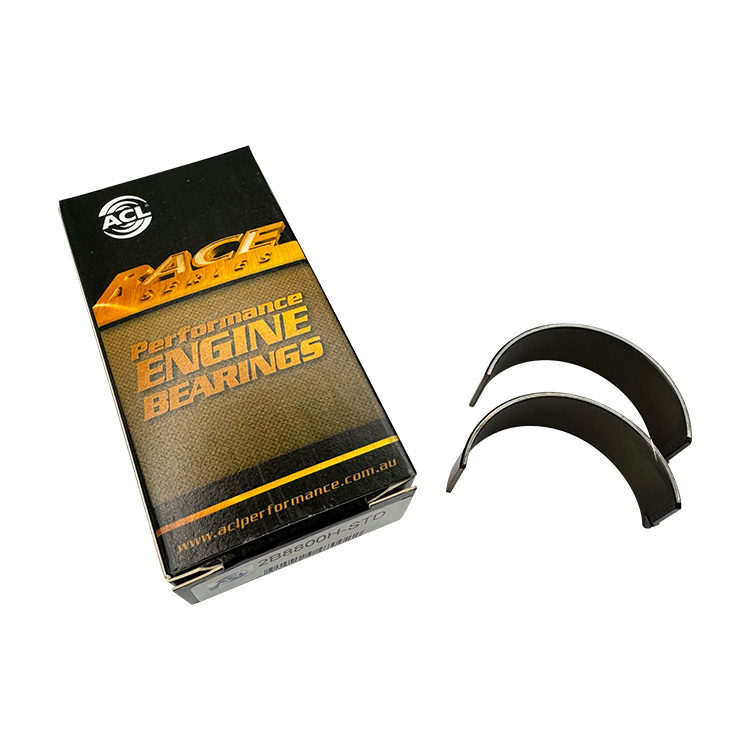

POLARIS XP1000 / xp900 RACE SERIES PERFORMANCE ROD BEARINGS.
New ACL rod bearings for the Polaris XP1000, XP900, Ranger and General engine platforms are available exclusively through BC. ACL Race Series performance engine bearings are manufactured to exacting tolerances. Micron tolerance machining supported by precision measurement systems delivers consistent accuracy to key characteristics like wall thickness and crush. A blend of characteristics to provide high strength and excellent seizure resistance with no flash plating applied to further improve bearing retention and maximise heat transfer. Improved bearing retention from higher radial contact pressure with more effective heat dissipation through improved thermal transfer. Bearing Eccentricity Definition: Gradual reduction in wall thickness between the crown and parting line. ACL Race Series performance engine bearings feature increased eccentricity to improve shape adaptation to compensate for bore distortion at high speed operation. Assists in the formation of hydrodynamic oil film.
  • Superior seizure resistance
  • Superior cavitation resistance
  • Superior wear resistance
  • Superior protection against oil starvation
  • Mix and match the two part numbers to make Polaris Green
Part # Description # Sizes Buy Now Status
BC4907 ROD BEARINGS - ACL Race Series, Coated Bearings - Yellow OEM Replacement (XP1000, XP900, Ranger and General) Standard In-Stock
BC4907HX ROD BEARINGS - ACL Race Series, Coated Bearings - White OEM Replacement w/extra .001" extra oil clearance (XP1000, XP900, Ranger and General) +.001" In-Stock
